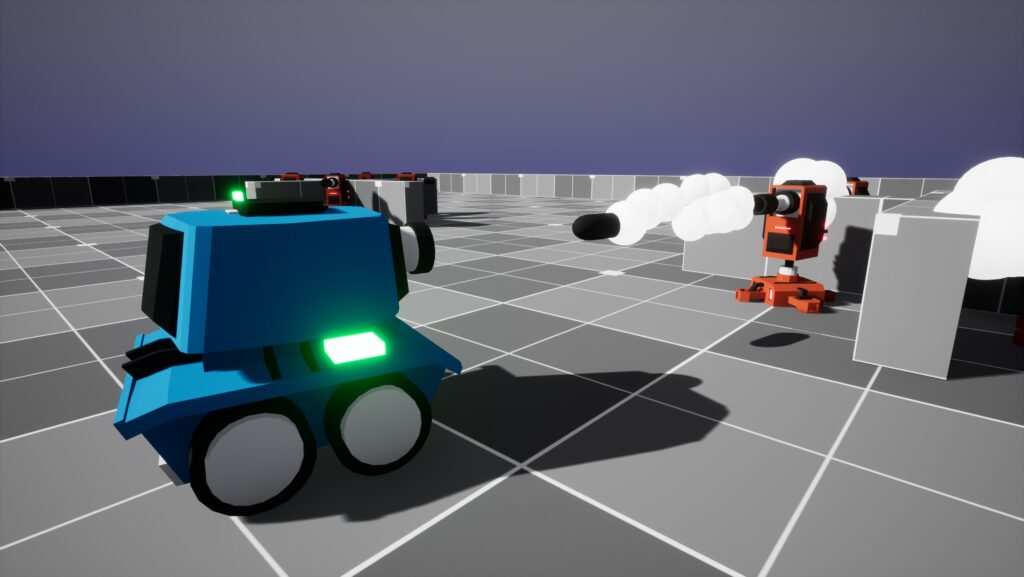

Toon Tanks

April 2022

This is my first game programmed with with C++ instead of blueprints. Consists of eliminating all the turrets without being eliminated.

This project started following an udemy course made by GameDev.tv Team and Ben Tristem. (One of the best selling courses about c++ for Unreal Engine).

It was a great first contact with C++. I understood the workflow and how the blueprints complement the C++ classes.

Although is a simple project, it was a good example of how to use inheritance and components, and how to seperate functionalities.

Code

Base Pawn
// Fill out your copyright notice in the Description page of Project Settings.

#pragma once

#include "CoreMinimal.h"
#include "GameFramework/Pawn.h"
#include "BasePawn.generated.h"


UCLASS()
class TOONTANKS_API ABasePawn : public APawn
{
	GENERATED_BODY()

public:
	// Sets default values for this pawn's properties
	ABasePawn();

	void HandleDestruction();

protected:

	void RotateTurret(FVector LookAtTarget);
	void Fire();

private:

	UPROPERTY(VisibleAnyWhere, BlueprintReadOnly, Category = "Components", meta = (AllowPrivateAccess = "true"))
	UStaticMeshComponent* TurretMesh;

	UPROPERTY(VisibleAnyWhere, BlueprintReadOnly, Category = "Components", meta = (AllowPrivateAccess = "true"))
	class UCapsuleComponent* CapsuleComp;

	UPROPERTY(VisibleAnyWhere, BlueprintReadOnly, Category = "Components", meta = (AllowPrivateAccess = "true"))
	UStaticMeshComponent* BaseMesh;

	UPROPERTY(VisibleAnyWhere, BlueprintReadOnly, Category = "Components", meta = (AllowPrivateAccess = "true"))
	USceneComponent* ProjectileSpawnPoint;

	UPROPERTY(EditDefaultsOnly, Category = "Combat")
	TSubclassOf<class AProjectile> ProjectileClass;

	UPROPERTY(EditAnywhere, Category = "Combat")
	class UParticleSystem* DeathParticles;

	UPROPERTY(EditAnywhere, Category = "Combat")
	class USoundBase* DeathSound;

	UPROPERTY(EditAnyWhere, Category = "Combat")
	TSubclassOf<class UCameraShakeBase> DeathCameraShakeClass;

};

// Fill out your copyright notice in the Description page of Project Settings.


#include "BasePawn.h"
#include "Components/CapsuleComponent.h"
#include "Components/StaticMeshComponent.h"
#include "Projectile.h"
#include "Kismet/Gameplaystatics.h"
#include "Particles/ParticleSystem.h"

// Sets default values
ABasePawn::ABasePawn()
{
 	// Set this pawn to call Tick() every frame.  You can turn this off to improve performance if you don't need it.
	PrimaryActorTick.bCanEverTick = true;

	CapsuleComp = CreateDefaultSubobject<UCapsuleComponent>(TEXT("Capsule Collider"));
	RootComponent = CapsuleComp;

	BaseMesh = CreateDefaultSubobject<UStaticMeshComponent>(TEXT("Base Mesh"));
	BaseMesh->SetupAttachment(CapsuleComp);

	TurretMesh = CreateDefaultSubobject<UStaticMeshComponent>(TEXT("Turret Mesh"));
	TurretMesh->SetupAttachment(BaseMesh);

	ProjectileSpawnPoint = CreateDefaultSubobject<USceneComponent>(TEXT("Spawn Point"));
	ProjectileSpawnPoint->SetupAttachment(TurretMesh);
}

void ABasePawn::HandleDestruction() {

	if (DeathParticles) {
		UGameplayStatics::SpawnEmitterAtLocation(this, DeathParticles, GetActorLocation(),GetActorRotation());
	}
	if (DeathSound) {
		UGameplayStatics::PlaySoundAtLocation(this, DeathSound, GetActorLocation());
	}
	if (DeathCameraShakeClass) {
		GetWorld()->GetFirstPlayerController()->ClientStartCameraShake(DeathCameraShakeClass);
	}
}

void ABasePawn::RotateTurret(FVector LookAtTarget) {
	FVector ToTarget = LookAtTarget - TurretMesh->GetComponentLocation();
	FRotator LookAtRotation = FRotator(0.f, ToTarget.Rotation().Yaw, 0.f);
	TurretMesh->SetWorldRotation(LookAtRotation);

}

void ABasePawn::Fire()
{
	FVector Location = ProjectileSpawnPoint->GetComponentLocation();
	FRotator Rotation = ProjectileSpawnPoint->GetComponentRotation();

	AProjectile* Projectile = GetWorld()->SpawnActor<AProjectile>(ProjectileClass, Location, Rotation);
	Projectile->SetOwner(this);

}

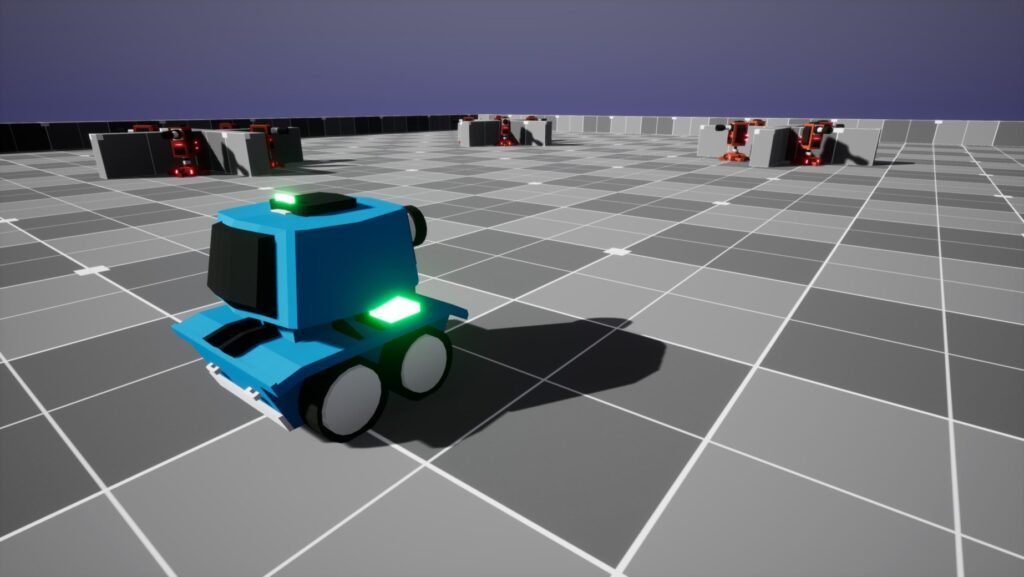

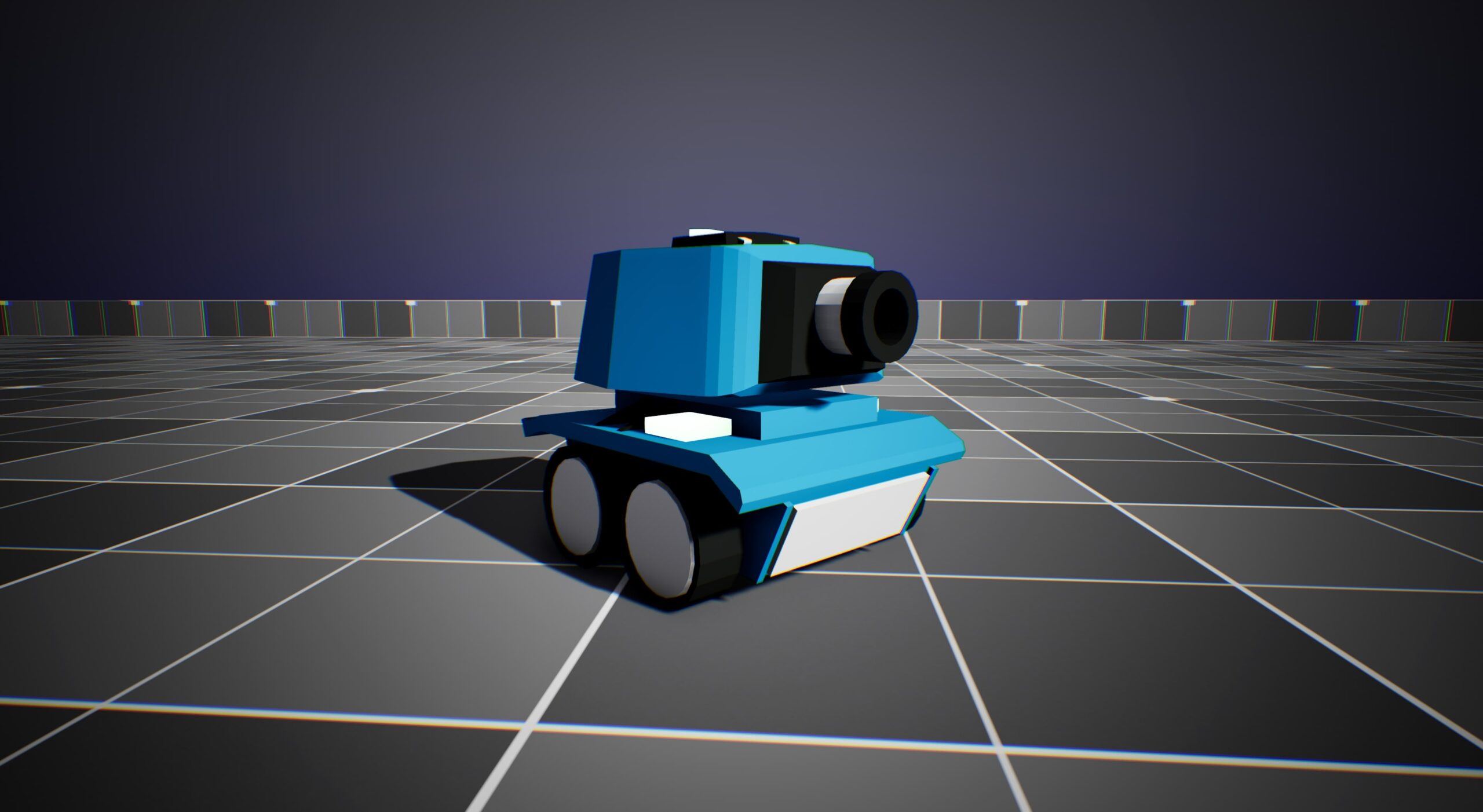

Tank
// Fill out your copyright notice in the Description page of Project Settings.

#pragma once

#include "CoreMinimal.h"
#include "BasePawn.h"
#include "Tank.generated.h"


UCLASS()
class TOONTANKS_API ATank : public ABasePawn
{
	GENERATED_BODY()

public:
	ATank();

	// Called to bind functionality to input
	virtual void SetupPlayerInputComponent(class UInputComponent* PlayerInputComponent) override;

public:
	// Called every frame
	virtual void Tick(float DeltaTime) override;

	void HandleDestruction();

	APlayerController* GetTankPlayerController() const { return TankPlayerController;};

	bool bAlive = true;

protected:
	//Called when the game starts or when spawned
	virtual void BeginPlay() override;

private:

	UPROPERTY(VisibleAnyWhere, Category = "Components")
	class USpringArmComponent* SpringArm;

	UPROPERTY(VisibleAnyWhere, Category = "Components")
	class UCameraComponent* Camera;

	UPROPERTY(EditAnywhere, Category = "Movement")
	float Speed = 200.f;

	UPROPERTY(EditAnywhere, Category = "Movement")
	float TurnRate = 45.f;

	void Move(float Value);
	void Turn(float Value);

	APlayerController* TankPlayerController;
};
// Fill out your copyright notice in the Description page of Project Settings.

#include "Tank.h"
#include "GameFramework/SpringArmComponent.h"
#include "Camera/CameraComponent.h"
#include "Kismet/GameplayStatics.h"


ATank::ATank()
{
	SpringArm = CreateDefaultSubobject<USpringArmComponent>(TEXT("Spring Arm"));
	SpringArm->SetupAttachment(RootComponent);

	Camera = CreateDefaultSubobject<UCameraComponent>(TEXT("Camera"));
	Camera->SetupAttachment(SpringArm);
}

void ATank::SetupPlayerInputComponent(UInputComponent* PlayerInputComponent){
	Super::SetupPlayerInputComponent(PlayerInputComponent);

	PlayerInputComponent->BindAxis(TEXT("MoveForward"), this, &ATank::Move);
	PlayerInputComponent->BindAxis(TEXT("Turn"), this, &ATank::Turn);

	PlayerInputComponent->BindAction(TEXT("Fire"), IE_Pressed, this, &ATank::Fire);
}

void ATank::Tick(float DeltaTime) {
	Super::Tick(DeltaTime);

	if (TankPlayerController) {
		FHitResult HitResult;
		TankPlayerController->GetHitResultUnderCursor(ECollisionChannel::ECC_Visibility, false, HitResult);

		RotateTurret(HitResult.ImpactPoint);
	}

}

void ATank::HandleDestruction() {
	Super::HandleDestruction();
	SetActorHiddenInGame(true);
	SetActorEnableCollision(true);
	SetActorTickEnabled(false);
	bAlive = false;
}

void ATank::BeginPlay() {
	Super::BeginPlay();

	TankPlayerController = Cast<APlayerController>(GetController());

}

void ATank::Move(float Value) {
	FVector DeltaLocation = FVector::ZeroVector;
	DeltaLocation.X = Value * Speed * UGameplayStatics::GetWorldDeltaSeconds(this) ;
	AddActorLocalOffset(DeltaLocation, true);
}

void ATank::Turn(float Value) {
	FRotator DealtaRotation = FRotator::ZeroRotator;
	DealtaRotation.Yaw = Value * TurnRate * UGameplayStatics::GetWorldDeltaSeconds(this);
	AddActorLocalRotation(DealtaRotation);
}

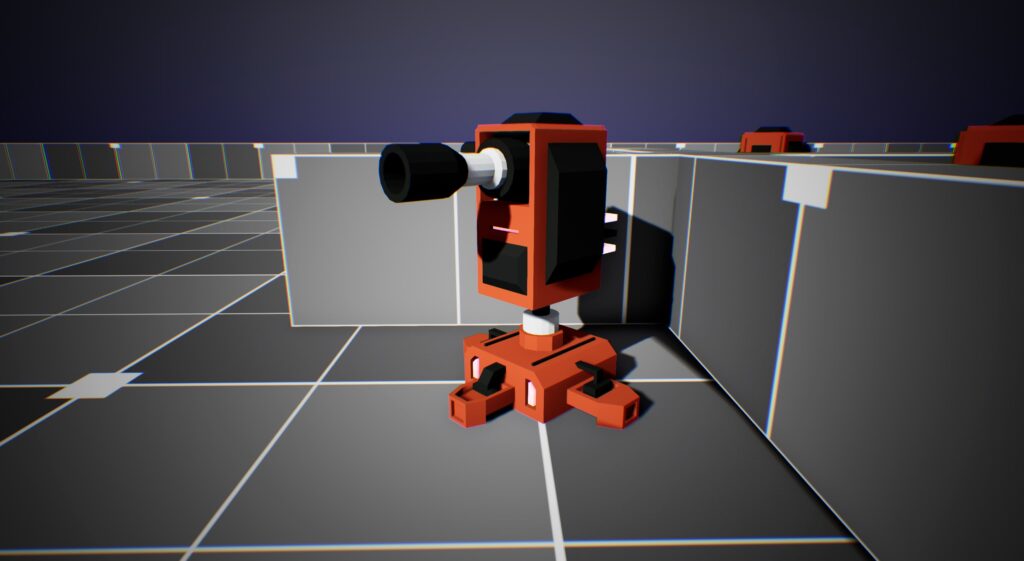

Tower
// Fill out your copyright notice in the Description page of Project Settings.

#pragma once

#include "CoreMinimal.h"
#include "BasePawn.h"
#include "Tower.generated.h"

/**
 *
 */
UCLASS()
class TOONTANKS_API ATower : public ABasePawn
{
	GENERATED_BODY()

public:

	virtual void Tick(float DeltaTime) override;

	void HandleDestruction();

protected:

	virtual void BeginPlay() override;

private:

	UPROPERTY(EditAnywhere, Category = "Combat", meta = (AllowPrivateAccess = "true"))
	float FireRange = 300.f;

	class ATank* Tank;

	FTimerHandle FireRateTimerHandle;
	float FireRate = 2.f;
	void CheckFireCondition();

	bool InFireRange();
};

// Fill out your copyright notice in the Description page of Project Settings.


#include "Tower.h"
#include "Tank.h"
#include "Kismet/GameplayStatics.h"
#include "TimerManager.h"

void ATower::Tick(float DeltaTime) {
	Super::Tick(DeltaTime);

	if (InFireRange()) {
		RotateTurret(Tank->GetActorLocation());
	}

}

void ATower::HandleDestruction() {
	Super::HandleDestruction();
	Destroy();
}

void ATower::BeginPlay() {
	Super::BeginPlay();

	Tank = Cast<ATank>(UGameplayStatics::GetPlayerPawn(this, 0));

	GetWorldTimerManager().SetTimer(FireRateTimerHandle, this, &ATower::CheckFireCondition, FireRate, true);
}

void ATower::CheckFireCondition() {

	if (Tank == nullptr) {
		return;
	}

	if (InFireRange() && Tank->bAlive) {
		Fire();
	}
}

bool ATower::InFireRange() {
	if (Tank) {
		float Distance = FVector::Dist(GetActorLocation(), Tank->GetActorLocation());

		if (Distance <= FireRange) {
			return true;
		}
	}

	return false;
}
Health Component
// Fill out your copyright notice in the Description page of Project Settings.

#pragma once

#include "CoreMinimal.h"
#include "Components/ActorComponent.h"
#include "HealthComponent.generated.h"


UCLASS( ClassGroup=(Custom), meta=(BlueprintSpawnableComponent) )
class TOONTANKS_API UHealthComponent : public UActorComponent
{
	GENERATED_BODY()

public:
	// Sets default values for this component's properties
	UHealthComponent();

protected:
	// Called when the game starts
	virtual void BeginPlay() override;

private:

	UPROPERTY(EditAnyWhere)
	float MaxHealth = 100.f;

	UPROPERTY(VisibleAnyWhere)
	float Health = 0;

	UFUNCTION()
	void DamageTaken(AActor *DamageActor, float Damage, const UDamageType *DamageType, class AController *Instigator, AActor *DamageCauser);

	class AToonTanksGameMode* ToonTanksGamemMode;

public:
	// Called every frame
	virtual void TickComponent(float DeltaTime, ELevelTick TickType, FActorComponentTickFunction* ThisTickFunction) override;


};

// Fill out your copyright notice in the Description page of Project Settings.


#include "HealthComponent.h"
#include "GameFramework/Actor.h"
#include "Kismet/GameplayStatics.h"
#include "ToonTanksGameMode.h"

// Sets default values for this component's properties
UHealthComponent::UHealthComponent()
{
	// Set this component to be initialized when the game starts, and to be ticked every frame.  You can turn these features
	// off to improve performance if you don't need them.
	PrimaryComponentTick.bCanEverTick = true;


}


// Called when the game starts
void UHealthComponent::BeginPlay()
{
	Super::BeginPlay();

	Health = MaxHealth;

	GetOwner()->OnTakeAnyDamage.AddDynamic(this, &UHealthComponent::DamageTaken);
	ToonTanksGamemMode = Cast<AToonTanksGameMode>(UGameplayStatics::GetGameMode(this));
}


// Called every frame
void UHealthComponent::TickComponent(float DeltaTime, ELevelTick TickType, FActorComponentTickFunction* ThisTickFunction)
{
	Super::TickComponent(DeltaTime, TickType, ThisTickFunction);

}

void UHealthComponent::DamageTaken(AActor *DamageActor, float Damage, const UDamageType *DamageType, class AController *Instigator, AActor *DamageCauser) {

	if (Damage <= 0.f) return;

	Health -= Damage;
	if (Health <= 0.f && ToonTanksGamemMode) {
		ToonTanksGamemMode->ActorDied(DamageActor);
	}
}
Projectile
// Fill out your copyright notice in the Description page of Project Settings.

#pragma once

#include "CoreMinimal.h"
#include "GameFramework/Actor.h"
#include "Projectile.generated.h"

UCLASS()
class TOONTANKS_API AProjectile : public AActor
{
	GENERATED_BODY()

public:
	// Sets default values for this actor's properties
	AProjectile();

protected:
	// Called when the game starts or when spawned
	virtual void BeginPlay() override;

private:

	UPROPERTY(EditDefaultsOnly, Category = "Combat")
	UStaticMeshComponent* ProjectileMesh;

	UPROPERTY(VisibleAnywhere, Category = "Movement")
	class UProjectileMovementComponent* ProjectileMovementComponent;

	UFUNCTION()
	void OnHit(UPrimitiveComponent *HitComp, AActor *OtherActor, UPrimitiveComponent *OtherComp, FVector NormalImpulse, const FHitResult& Hit);

	UPROPERTY(EditAnyWhere)
	float Damage = 50.f;

	UPROPERTY(EditAnywhere, Category = "Combat")
	class UParticleSystem* HitParticles;

	UPROPERTY(VisibleAnywhere, Category = "Combat")
	class UParticleSystemComponent* TrailParticles;

	UPROPERTY(EditAnywhere, Category = "Combat")
	class USoundBase* LaunchSound;

	UPROPERTY(EditAnywhere, Category = "Combat")
	USoundBase* HitSound;

	UPROPERTY(EditAnyWhere, Category = "Combat")
	TSubclassOf<class UCameraShakeBase> HitCameraShakeClass;

public:
	// Called every frame
	virtual void Tick(float DeltaTime) override;

};

// Fill out your copyright notice in the Description page of Project Settings.


#include "Projectile.h"
#include "Components/StaticMeshComponent.h"
#include "GameFramework/ProjectileMovementComponent.h"
#include "GameFramework/DamageType.h"
#include "Kismet/GameplayStatics.h"
#include "Particles/ParticleSystemComponent.h"

// Sets default values
AProjectile::AProjectile()
{
 	// Set this actor to call Tick() every frame.  You can turn this off to improve performance if you don't need it.
	PrimaryActorTick.bCanEverTick = true;

	ProjectileMesh = CreateDefaultSubobject<UStaticMeshComponent>(TEXT("Projectile Mesh"));
	RootComponent = ProjectileMesh;

	ProjectileMovementComponent = CreateDefaultSubobject<UProjectileMovementComponent>(TEXT("Projectile Movement Component"));
	ProjectileMovementComponent->MaxSpeed = 1300.f;
	ProjectileMovementComponent->InitialSpeed = 1300.f;

	TrailParticles = CreateDefaultSubobject<UParticleSystemComponent>(TEXT("Smoke Trail"));
	TrailParticles->SetupAttachment(RootComponent);
}

// Called when the game starts or when spawned
void AProjectile::BeginPlay()
{
	Super::BeginPlay();

	ProjectileMesh->OnComponentHit.AddDynamic(this, &AProjectile::OnHit);

	if (LaunchSound) {
		UGameplayStatics::PlaySoundAtLocation(this, LaunchSound, GetActorLocation());

	}
}

// Called every frame
void AProjectile::Tick(float DeltaTime)
{
	Super::Tick(DeltaTime);

}

void AProjectile::OnHit(UPrimitiveComponent *HitComp, AActor *OtherActor, UPrimitiveComponent *OtherComp, FVector NormalImpulse, const FHitResult& Hit) {

	AActor* MyOwner = GetOwner();
	if (MyOwner == nullptr) {
		Destroy();
		return;
	}

	AController* MyOwnerInstigator = MyOwner->GetInstigatorController();
	UClass* DamageTypeClass = UDamageType::StaticClass();

	if (OtherActor && OtherActor != this && OtherActor != MyOwner) {
		UGameplayStatics::ApplyDamage(OtherActor, Damage, MyOwnerInstigator, this, DamageTypeClass);

		if (HitParticles) {
			UGameplayStatics::SpawnEmitterAtLocation(this, HitParticles, GetActorLocation(), GetActorRotation());
		}
		if (HitSound) {
			UGameplayStatics::PlaySoundAtLocation(this, HitSound, GetActorLocation());
		}
		if (HitCameraShakeClass) {
			GetWorld()->GetFirstPlayerController()->ClientStartCameraShake(HitCameraShakeClass);
		}
	}

	Destroy();

}
Player Controller
// Fill out your copyright notice in the Description page of Project Settings.

#pragma once

#include "CoreMinimal.h"
#include "GameFramework/PlayerController.h"
#include "ToonTanksPlayerController.generated.h"

/**
 *
 */
UCLASS()
class TOONTANKS_API AToonTanksPlayerController : public APlayerController
{
	GENERATED_BODY()

public:

	void SetPlayerEnabledState(bool bPlayerEnabled);

};

// Fill out your copyright notice in the Description page of Project Settings.


#include "ToonTanksPlayerController.h"
#include "GameFramework/Pawn.h"

void AToonTanksPlayerController::SetPlayerEnabledState(bool bPlayerEnabled) {

	if (bPlayerEnabled) {
		GetPawn()->EnableInput(this);
	}
	else {
		GetPawn()->DisableInput(this);
	}
	bShowMouseCursor = bPlayerEnabled;
}
Toon Tanks Game Mode
// Fill out your copyright notice in the Description page of Project Settings.

#pragma once

#include "CoreMinimal.h"
#include "GameFramework/GameModeBase.h"
#include "ToonTanksGameMode.generated.h"

/**
 *
 */
UCLASS()
class TOONTANKS_API AToonTanksGameMode : public AGameModeBase
{
	GENERATED_BODY()

public:

	void ActorDied(AActor* DeadActor);

protected:

	virtual void BeginPlay() override;

	UFUNCTION(BlueprintImplementableEvent)
	void StartGame();

	UFUNCTION(BlueprintImplementableEvent)
	void GameOver(bool bWonGame);

private:

	class ATank* Tank;
	class AToonTanksPlayerController* ToonTanksPlayerController;

	float StartDelay = 3.f;

	void HandleGameStart();

	int32 TargetTowers = 0;

	int32 GetTargetTowersCount();
};


// Fill out your copyright notice in the Description page of Project Settings.


#include "ToonTanksGameMode.h"
#include "Kismet/GameplayStatics.h"
#include "Tank.h"
#include "Tower.h"
#include "ToonTanksPlayerController.h"

void AToonTanksGameMode::BeginPlay() {

	Super::BeginPlay();

	HandleGameStart();

}

void AToonTanksGameMode::ActorDied(AActor *DeadActor) {

	if (DeadActor == Tank) {
		Tank->HandleDestruction();

		if (ToonTanksPlayerController) {
			ToonTanksPlayerController->SetPlayerEnabledState(false);
		}
		GameOver(false);
	}
	else if(ATower* DestroyedTower = Cast<ATower>(DeadActor)){
		DestroyedTower->HandleDestruction();
		--TargetTowers;
		if (TargetTowers == 0) {

			GameOver(true);
		}
	}
}

void AToonTanksGameMode::HandleGameStart() {
	TargetTowers = GetTargetTowersCount();
	Tank = Cast<ATank>(UGameplayStatics::GetPlayerPawn(this, 0));
	ToonTanksPlayerController = Cast<AToonTanksPlayerController>(UGameplayStatics::GetPlayerController(this, 0));

	StartGame();

	if (ToonTanksPlayerController) {
		ToonTanksPlayerController->SetPlayerEnabledState(false);

		FTimerHandle PlayerEnableTimerHandle;
		FTimerDelegate PlayerEnableTimerdelegate = FTimerDelegate::CreateUObject(
			ToonTanksPlayerController,
			&AToonTanksPlayerController::SetPlayerEnabledState,
			true
		);

		GetWorldTimerManager().SetTimer(PlayerEnableTimerHandle, PlayerEnableTimerdelegate, StartDelay, false);

	}
}

int32 AToonTanksGameMode::GetTargetTowersCount() {

	TArray<AActor*> Towers;
	UGameplayStatics::GetAllActorsOfClass(this, ATower::StaticClass(), Towers);
	return Towers.Num();
}
